• Body-color front/rear step bumper-inc: body-color painted face bar w/black lower front valance
• Front stone guards & rear mud flaps
• Chromed H-bar grille
• Black door handles
• (4) cargo box tie-down hooks
• Raised "power dome" hood
• Fog lamps
• Bi-color tail lamps
• Black manual side mirrors
• Solar tinted glass on windshield & front door windows
• Variable-intermittent windshield wipers
• Quick-release tailgate w/black handle

• Cloth front 60/40 split bench seat
• Rear jump seats
• Color-keyed carpeted floor covering & front floor mats

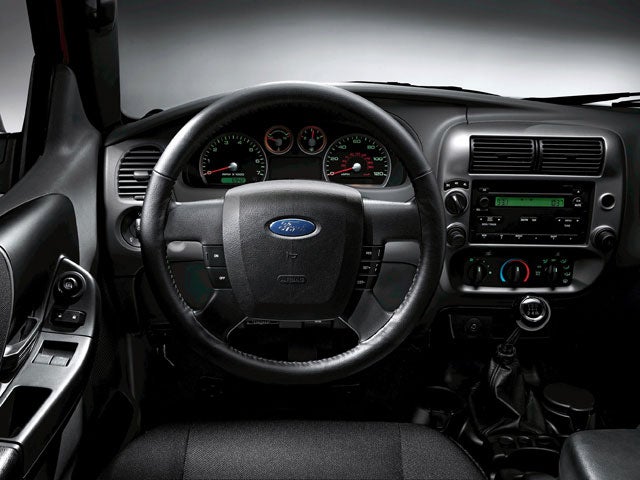

• 4-spoke black urethane steering wheel
• Black-faced gauge cluster w/black trim rings
• Tire pressure monitoring system (TPMS)
• SecuriLock anti-theft system
• Air conditioning
• AM/FM stereo w/CD/MP3 player-inc: clock, satellite radio capability, audio input jack
• 12-volt auxiliary pwr point
• Glove box
• Cup holders
• Smokers pkg-inc: lighter, ash tray/cup
• Manual day/night rearview mirror
• High series Ranger door trim panels w/cloth insert & map pockets
• Sun visors w/LH strap & RH vanity mirror
• Driver/passenger-side A-pillar-mounted grab handles
• Dome light

• 4-wheel anti-lock brake system (ABS)
• Driver & front passenger dual-stage airbags w/front passenger sensing system
• Personal Safety System
• Front shoulder safety belts-inc: height adjusters, pretensioners, energy management, retractors
• Center front lap belt
• Child safety seat restraint latches (LATCH) on front passenger seat

4.0L SOHC V6 ENGINE

• (STD)

• Mileage
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 19
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 540
• Maximum Alternator Capacity (amps): 115
• Maximum Alternator Watts: 1725
• Cooling System
• Total Cooling System Capacity (qts): 7.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2710
• Gross Axle Wt Rating - Rear (lbs): 2600
• Curb Weight - Front (lbs): 2205
• Curb Weight - Rear (lbs): 1463
• Gross Vehicle Weight Rating Cap (lbs): 5140
• Gross Combined Wt Rating (lbs): 7000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 200
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 3140
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 314
• Suspension
• Suspension Type - Front: SLA w/Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 2710
• Spring Capacity - Rear (lbs): 2600
• Axle Type - Front: Independent SLA
• Axle Type - Rear: Ford Semi-Floating
• Axle Capacity - Front (lbs): 2850
• Axle Capacity - Rear (lbs): 2750
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.28 x 0.39
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 10.00 x 2.50
• Tires
• Front Tire Size: P235/75R15
• Rear Tire Size: P235/75R15
• Spare Tire Size: Compact
• Front Tire Capacity (lbs): 1843
• Rear Tire Capacity (lbs): 1843
• Spare Tire Capacity (lbs): 1984
• Revolutions/Mile @ 45 mph - Front: 717
• Revolutions/Mile @ 45 mph - Rear: 717
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 15 x 7
• Rear Wheel Size (in): 15 x 7
• Spare Wheel Size (in): Compact
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 18.7
• Turning Diameter - Curb to Curb (ft): 43.0
• Turning Diameter - Wall to Wall (ft): 45.2
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 19.5
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 125.9
• Length, Overall w/o rear bumper (in): 203.6
• Width, Max w/o mirrors (in): 71.3
• Height, Overall (in): 67.7
• Overhang, Front (in): 34.0
• Overhang, Rear w/o bumper (in): 43.8
• Front Bumper to Back of Cab (in): 121.6
• Cab to Axle (in): 38.3
• Cab to End of Frame (in): 73.0
• Ground to Top of Load Floor (in): 31.9
• Frame Width, Rear (in): 32.8
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.0
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 72.7
• Cargo Box Width @ Top, Rear (in): 54.4
• Cargo Box Width @ Floor (in): 54.4
• Cargo Box Width @ Wheelhousings (in): 40.5
• Cargo Box (Area) Height (in): 16.5
• Tailgate Width (in): 52.0
• Cargo Volume (ft³): 37.4
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 39.2
• Front Leg Room (in): 42.4
• Front Shoulder Room (in): 54.5
• Front Hip Room (in): 52.7
• Second Head Room (in): 33.2
• Second Leg Room (in): 39.1
• Second Shoulder Room (in): 14.1
• Second Hip Room (in): 18.7
• Summary

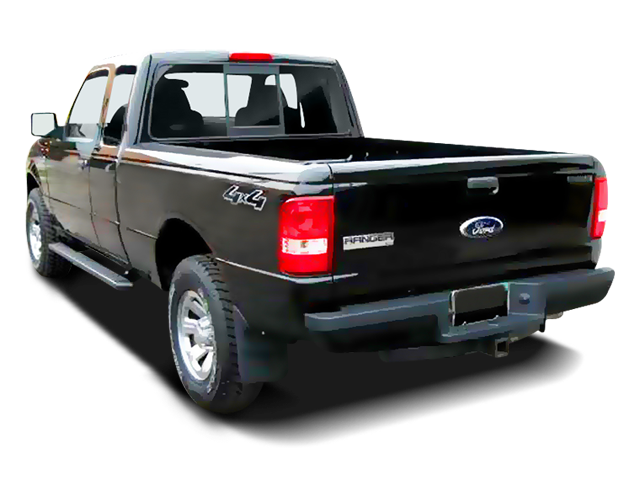

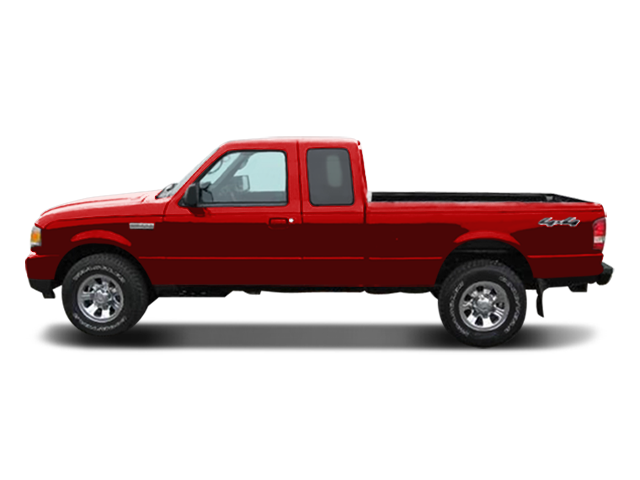

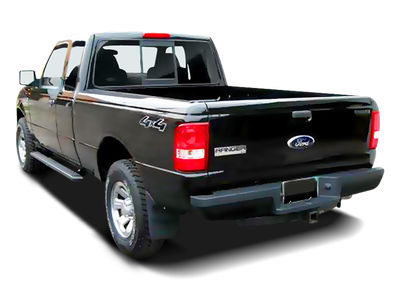

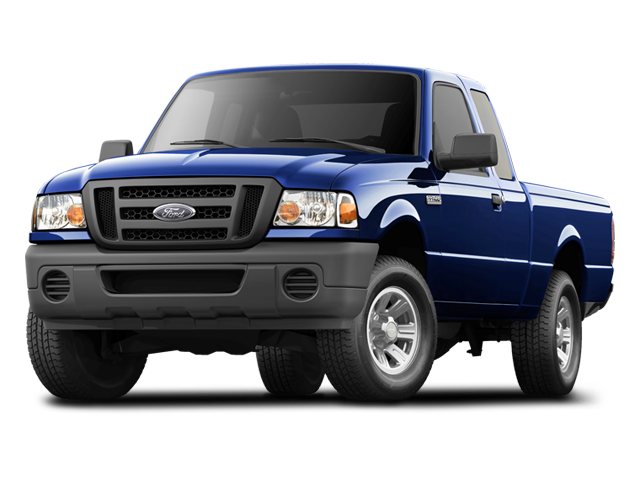

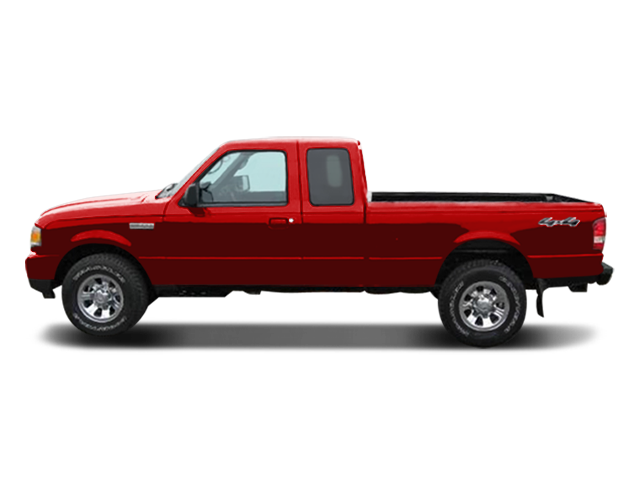

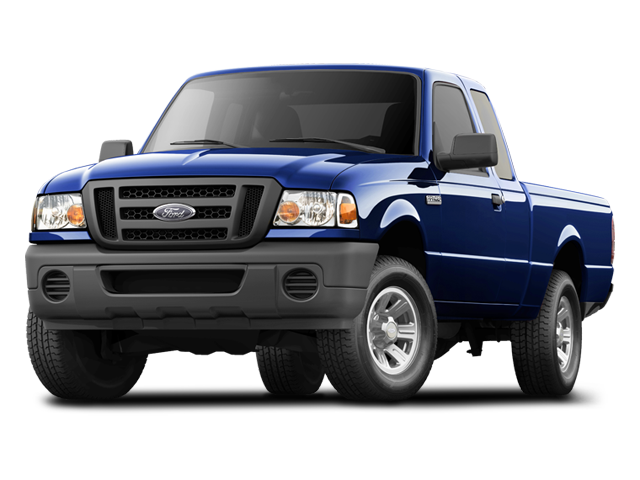

• Vehicle Name: Ford Ranger
• Body Style: Supercab 6' Styleside
• Body Code: 125.9" WB
